LIFTING/CONTOURING

痛みのない非侵襲的リフティング

糸リフトの3.4倍**

術後管理にも KARINA lifting™

脂肪吸引・骨切術・両顎手術後の癒着・コラーゲン現象の防止にも

極超短波リフティングはインスタントな効果を発揮します。

糸リフトより客観的成績評価尺度で1.6倍*の効果・患者満足度は3.4倍**

の優れた治療成績が立証されました。


*2023~2024年韓国国内132症例を対象の比較研究 **2022~2024年韓国国内183症例を用いたアンケート調査

DOWNTIME ZERO

ダウンタイムなし・痛みなしの世界

SAFETY

KARINA LIFTING©は韓国MFDS承認機器で​す(医師等が施術を行う医療機器として)

INSTANT EFFECT

KARINA LIFTING©は施術直後から効果を感​じることができます。但し術後2Wの時点で​効果はPEAKとなります。

No Pain/Max Gain

HIFUの1/10の痛み。

HIFUの5倍強いエネルギー伝達力。


既存機器との比較

カリナリフティング;マイクロ波装置

引き締め、アンチエイジング

スレッドリフト

FLX

CPT

オリジ**

FORMA

PO****CP25

ウルセラ

MPT

ミニFX

ボディFX

脂肪減少

脂肪吸引

日本初の第4世代のリ​フティングデバイス

ラジオ派

RF

超音波

HIFU

Thermage

Ulthera

極超短波(マイクロ派)

UHF(Microwave)

         2003         2010

   2025

スキンタイトニングおよびリフティング機器は、2003年に高周波が、2010年に超音波が使用され始​めて以降、多くの高周波および超音波治療機器が登場してきました。この度、新たな治療技術として注​目されている極超短波(Microwave)技術を採用した機器KARINA LIFTING©をご紹介します。


この新しい治療方法は、従来の技術を補完しつつ、より深い層への効果的なアプローチと短いダウンタ​イムを実現します。極超短波の新たな可能性を体感してください。

Case Reports

       のCASE REPORTS, 二重顎、​12kJ(10分照射)*3回、1カ月間隔の症例写真

THE World of ​Microwave Lifting

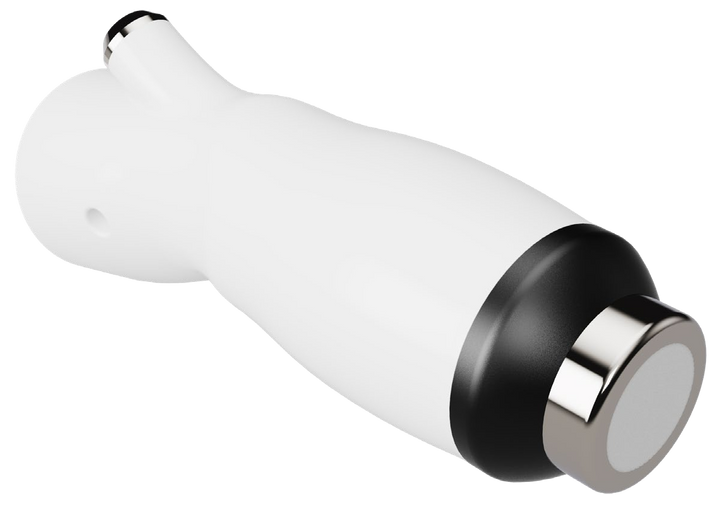

       は2つのHANDPIECEで構成され​ます。7MMは靭帯収縮・2.5MMはコラーゲン再​生に特化しております。

Depth 7MM

Depth 2.5MM

Depth 2.5MM

Depth 7MM

  1. Collagen Contraction
  2. Tightening of Fibrous Septae

3. Ligaments Contraction

2. Tightening of Fibrous Septae

4. Blebbing Effect ; Adipocytes Apotosis

Targets

Dermis

Targets

Subcutaneous Fat

Retaining Ligaments

2.5㎜・7㎜

The selective microwave frequency at which ​KARINA LIFTING© operates is 2.45GHz.

This ultrashort wave energy is transferred ​almost entirely to the skin tissue, especially ​the collagen and subcutaneous fat layers.

This protects the epidermal layer of the skin ​from unnecessary heating and keeps it ​cool.KARINA LIFTING© also features a ​continuous epidermal cooling system to keep ​your skin safe.

10-20℃

表面冷却

Dermis

20%

50-60℃

80%

Subcutaneous Fat

KARINA LIFTING© が動作するマイクロ波周波数は 2.45GHz です。

このエネルギーは、皮膚組織、特にコラーゲンと皮下脂肪層にほぼ完全に伝​達されます。

これにより、皮膚の表皮層が不必要な加熱から保護され、冷却された状態が​保たれます。KARINA LIFTING© には、皮膚を安全に保つための継続的な​表皮冷却システムも備わっています。

Why 2.45GHz ?

RF *6.78MHz

Dermis

80%

20%

38-50℃

Subcutaneous Fat

Microwave *2.45GHz

10-20℃

COOLING

Dermis

20%

48-55℃

80%

Subcutaneous Fat

48-55℃

2.45GHzの安全性

σ @2.45 GHz/σskin

10 ​9 ​8 ​7 ​6 ​5

4 ​3 ​2 ​1 ​0

σ

is the conductivity of the EPIDERMIS

skin

σ

changes with the frequency of

skin

electromagnetic waves.

8.9

σ

@2.45 GHz/σskin

skin

7.2

6

5.4

3.7

thermage 6.78MHz

3.5

1

500 KHz 1 MHz

2.5 GHz

27 MHz

40 MHz

2 MHz

3 MHz

Frequency (Hz) ​(nonlinear x-axis)

Microwave (KARINA LIFTING®)

σ

skin

≒ The conductivity of the EPIDERMIS


≒ Risk of burns

       はThermageに比べ火傷のリン​クが1/5です。

Characteristic

Microwaves

Radiofrequency (RF)

Frequency ​Range

300 MHz ~ 300 ​GHz

3 kHz ~ 300 MHz

Wavelength ​Range

1 mm ~ 1 m

1 m ~ 100 km

Energy Level (E)

Relatively higher ​due to ​frequency

Relatively lower

E=h⋅f

E: Energy (Joules, J)

h: Planck's constant 6.626×10−34J

f: Frequency (Hz)

Microwaves operate at frequencies such as 2.45 GHz, delivering significantly higher energy compared to ​RF at 6.87 MHz.

Example: At 6.87 MHz, the energy is approximately 360 times higher than at 10 MHz.

1 Thermage FLX and its successors operate at a frequency of 6.87 MHz.

In contrast, the MICROWAVE ; KARINA LIFTING© technology utilizes a selective microwave frequency of 2.45 GHz.

       はThermageに比べ360倍の時​間あたりエネルギー伝達ができます。

The Revolution of ​Technology

       は2025年現在、顔面靭帯を収縮​させることができる唯一のApproachです。

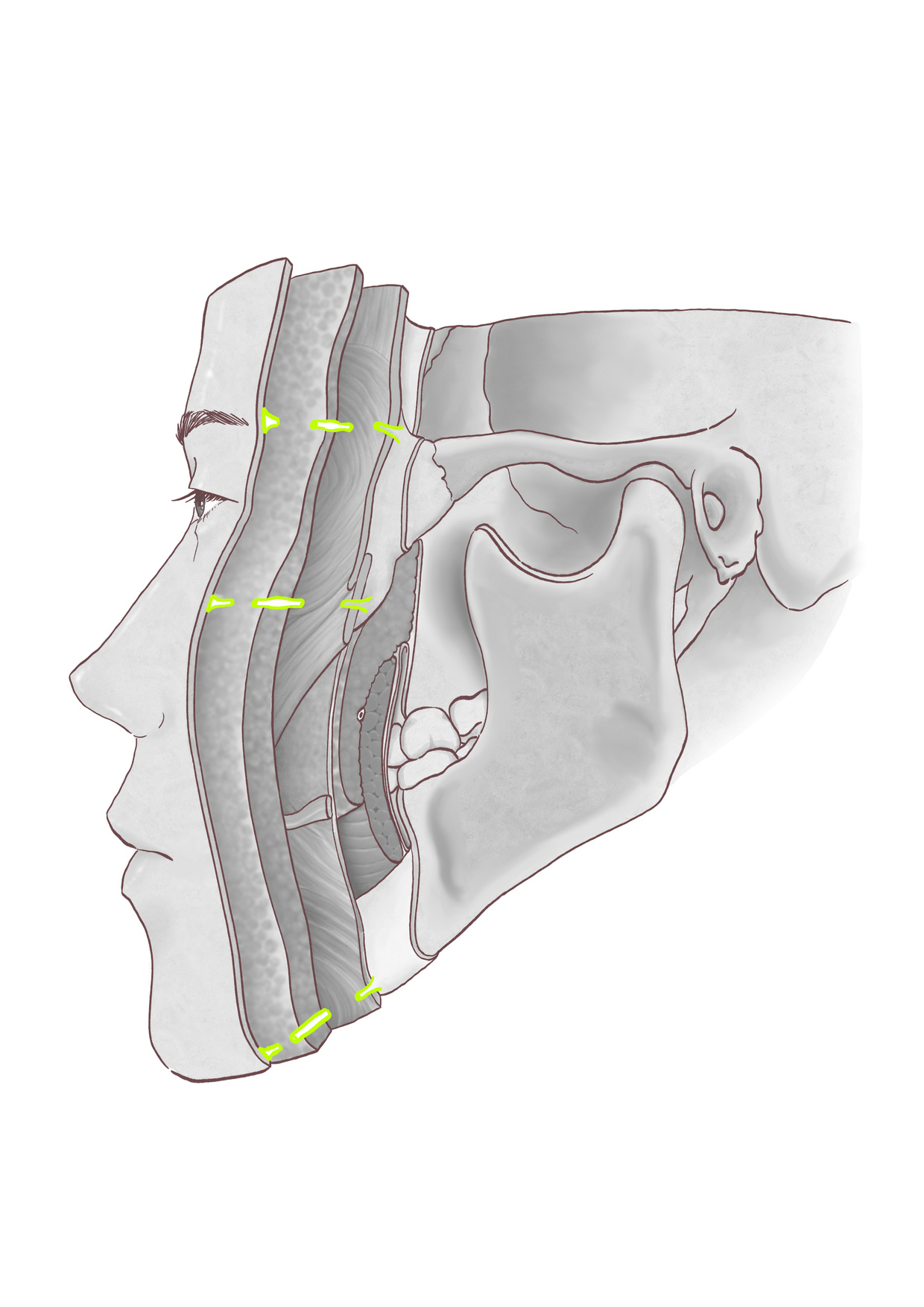

Retaining Ligaments

Retaining Ligaments

Ligaments Contraction

KARINA LIFTING© 7mm ​Handpiece is the only Energy ​Delivery Device that can ​directly contract Retaining ​Ligaments in the facial area.

BEFORE

AFTER

(KARINA LIFTING™,S.KOREA,SEOUL M,,2024)

Ligaments Contraction

Retaining Ligaments

Retaining Ligaments

Contraction

Retaining Ligaments

KARINA LIFTING© 7mm ​Handpiece is the only Energy ​Delivery Device that can ​directly contract Retaining ​Ligaments in the facial area.

(KARINA LIFTING™,S.KOREA,SEOUL M,,2024)

       は線維性中隔;Fibrous Septaeを収​縮させることができる唯一の非侵襲的Approach​です。

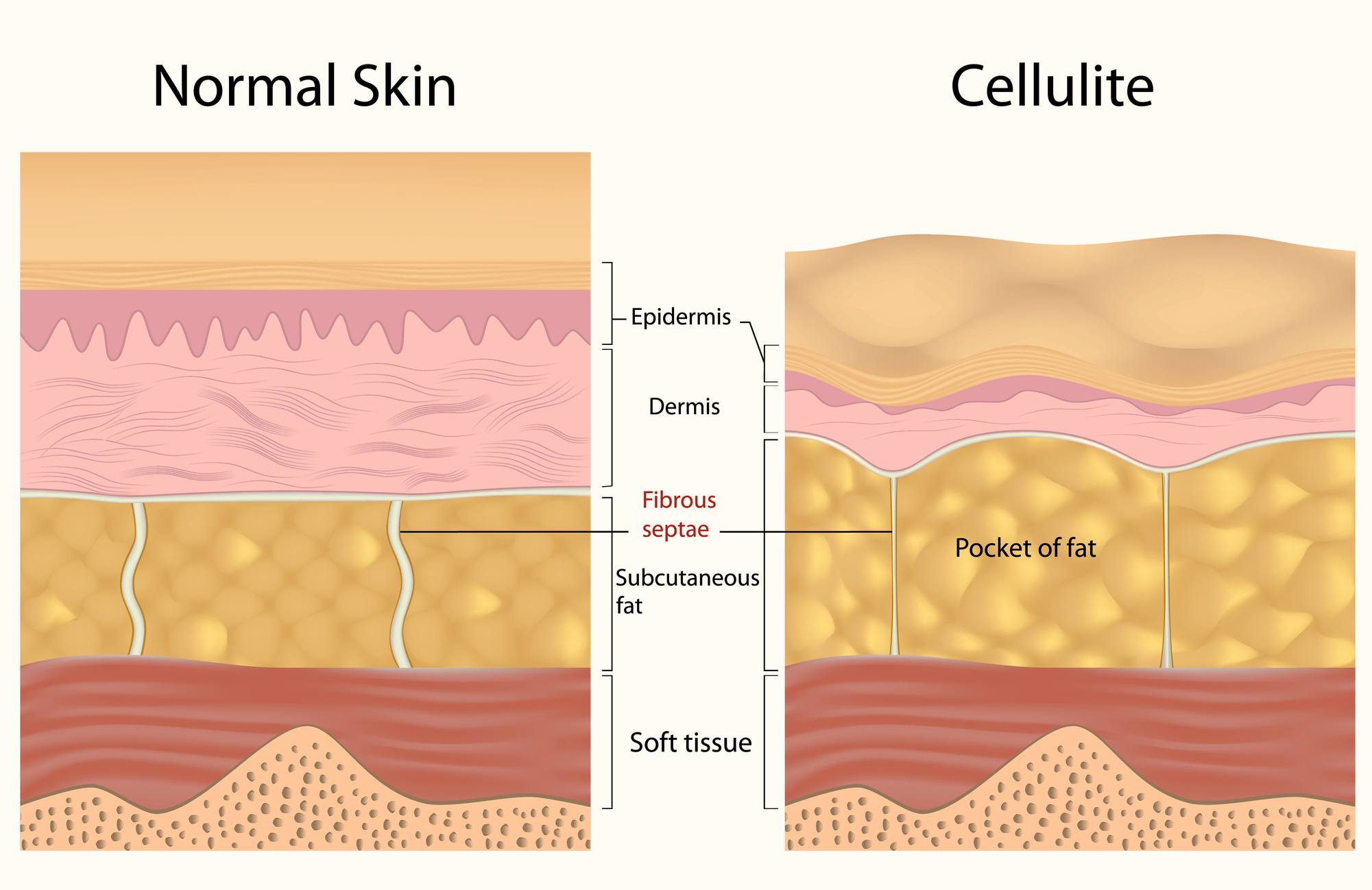

Tightening of Fibrous Septae


KARINA LIFTING©'s thermal energy stimulates collagen remodeling and tightens fibrous septae, a process that over time restores the elasticity of younger-looking skin.

Epidermis

Dermis

Pocket of Fat

Subcutaneous Fat

線維性中隔

Fibrous Septae

Pocket of Fat

The fibrous septae ​tighten.

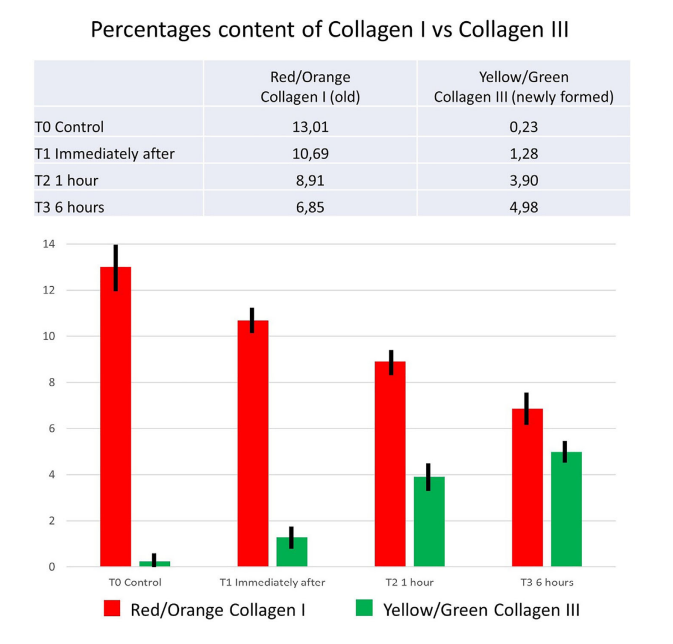

       はTypeIIIコラーゲンの割合を増や​し、Collagen Rejuvenation;コラーゲン再生に卓​越した効果を発揮できます。

Revised: 27 March 2020

Accepted: 28 March 2020

Received: 14 February 2020 ​DOI: 10.1111/dth.13362

ORIGINAL ARTICLE

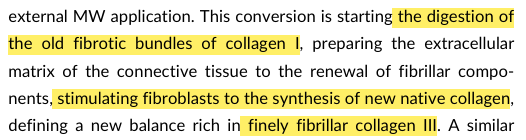

Remodeling of collagen constituting interlobular septa of ​subcutaneous adipose tissue following microwavesapplication

NicolaZerbinati1 | Edoardod'Este2 | AuroraFarina3 | ​MohammadJafferany4 | MasaGolubovic5 | IvaBinic6 ​NguyenVanThuong8 | MichaelTirant8 | FedericaRiva3 ​RaffaeleRauso9 | TorelloLotti10 | AlbertoCalligaro3

Antonia I. Cornaglia3

| JuliaSigova7 | ​| MarinaProtasoni1

|

|

Zerbinati N, d'Este E, Farina A, Cornaglia AI, Jafferany M, Golubovic M, Binic I, Sigova J, Van Thuong N, Tirant M, Riva F, Protasoni M, Rauso R, Lotti T, Calligaro A. Remodeling of collagen constituting ​interlobular septa of subcutaneous adipose tissue following microwaves application. Dermatol Ther. 2020 May;33(3):e13362. doi: 10.1111/dth.13362. Epub 2020 Apr 8. PMID: 32239616.

Aspect

Collagen Type I

Collagen Type III

Structure

Thick, dense, and rigid fibers

Thin, elastic, and flexible fibers

Role in Tissue

Provides structural stability and strength

Supports elasticity and tissue repair

Relation to ​Cellulite

can form hardened, fibrotic ​septa, contributing to ​dimpling and "orange peel" ​appearance

Reduced levels in ​cellulite; necessary ​for skin elasticity and ​smoothness

Behavior in Cellulite

Overaccumulation causes irregular tension and ​skin unevenness

Regeneration can restore elasticity ​and smooth skin

Effect of Treatment

Treatments reduce hardened collagen I

Treatments promote the regeneration ​of collagen III

       はセルライト現象効果が科学的に​立証されております。

KARINA lifting™ for post-operative care

also provides instant results in preventing adhesion and ​collagen formation after liposuction, osteotomy, and ​orthognathic surgery.

It has been proven to have excellent treatment results, with effectiveness 1.6 times* higher than that of ​thread lift on an objective outcome assessment scale and patient satisfaction 3.4 times higher**.

*Comparative study of 132 cases in Korea from 2023 to 2024


**Questionnaire survey of 183 cases in Korea from 2022 to 2024

Preventing adhesions after ​liposuction

Cellulite and fat cell ​destruction

The effect of exercise on muscle ​contraction and relaxation

       は脂肪吸引後の術後管理に卓越し​た効果を発揮します。

Q&A

施術時間

約10分

施術エネル​ギーの量

 ​

一回12KJ以上​を推奨

*フェイスリフティング基準

効果の持続




4週間隔で3回施術約​12カ月効果が維持

施術時の

疼痛

麻酔不要

HIFUの1/10*

*単位面積あたり疼痛スケールを使用.HIFU1.0J基準

効果が出る

タイミング

施術後すぐ



脂肪吸引

後の適応

脂肪吸引の後管​理目的施術可能

Clinical Questions

禁忌

Q1. 顔面に金糸(Au)やチタン以外の金属製インプラントが挿入されている場合、KARINA ​LIFTINGは可能か?

A1. 不可(熱伝導による深部火傷リスクのため、絶対禁忌)


Q2. 妊娠中の患者にKARINA LIFTINGは可能か?

A2. 不可(安全性の根拠不足、絶対禁忌)


Q3. 皮膚癌患者にKARINA LIFTINGは可能か?

A3. 不可(安全性の根拠不足、絶対禁忌)


Q4. 外科的施術後1ヶ月以内の部位にKARINA LIFTINGは可能か?

A4. 不可(組織回復不十分のため、絶対禁忌)


Q5. 13歳未満の児童へのKARINA LIFTINGは可能か?

A5. 不可(安全性根拠不足、絶対禁忌)


Q6. 金属製の入れ歯が挿入されたままKARINA LIFTINGは可能か?

A6. 不可(絶対禁忌)


Q7. こけがある部位への7mmハンドピース使用は可能か?

A7. 推奨されない(コケが悪化する恐れ、相対禁忌)


Q8. チタン製固定具や入れ歯がある患者が施術中に痛み・熱感を訴える場合、施術は可能か?

A8. 患部を避けて施術は可能(相対禁忌対応)


Q9. 刺青・タトゥー・アートメイク部位で痛み・熱感が生じた場合、施術は可能か?

A9. 当該部位を避ければ可能(相対禁忌対応)


Q10. PDO、PLLA、PCL糸リフト直後にKARINA LIFTINGは可能か?

A10. 可(但し糸リフト効果が減弱、。KARINA LIFTING先行が望ましい)


Q11. ボツリヌス毒素注入直後にKARINA LIFTINGは可能か?

A11. 可(但しボツリヌス毒素効果減弱。通常1W以上空ける。KARINA LIFTING先行が望ましい)


Q12. ヒアルロン酸(HA)注入直後にKARINA LIFTINGは可能か?

A12. 可(但しHA効果減弱。通常1W以上空ける。KARINA LIFTING先行が望ましい)


Q13. 保護者・親権者同意のない未成年者への施術は可能か?

A13. 倫理的に望ましくない(相対禁忌)


Q14. 脂肪吸引後、KARINA LIFTINGはいつから可能か?

A14. 抜糸6W後から可能(軽く当てる程度、相対禁忌考慮)


Q15. 骨切り術後、KARINA LIFTINGはいつから可能か?

A15. 抜糸10W後から可能(軽く当てる程度、相対禁忌考慮)


Q16. 一般外科手術(腫瘍切除、消化管手術)後、KARINA LIFTINGはいつから可能か?

A16. 3ヶ月以上空けること(相対禁忌考慮)


禁忌

禁忌

禁忌

禁忌

禁忌

注意

注意

注意

注意

注意

注意

注意

注意

注意

注意

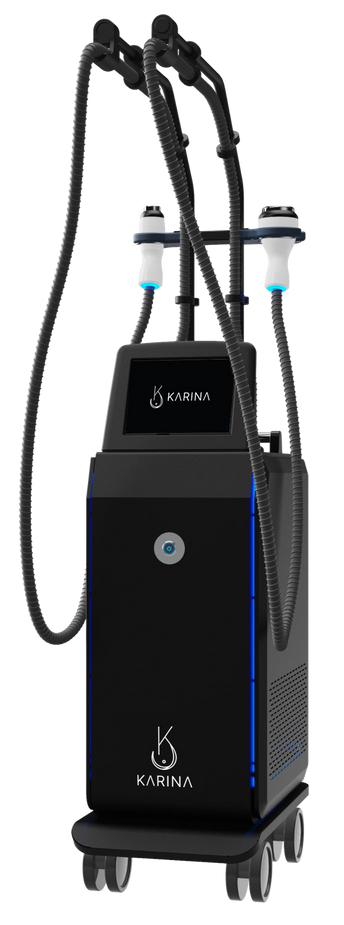

Source

Frequency ​Power

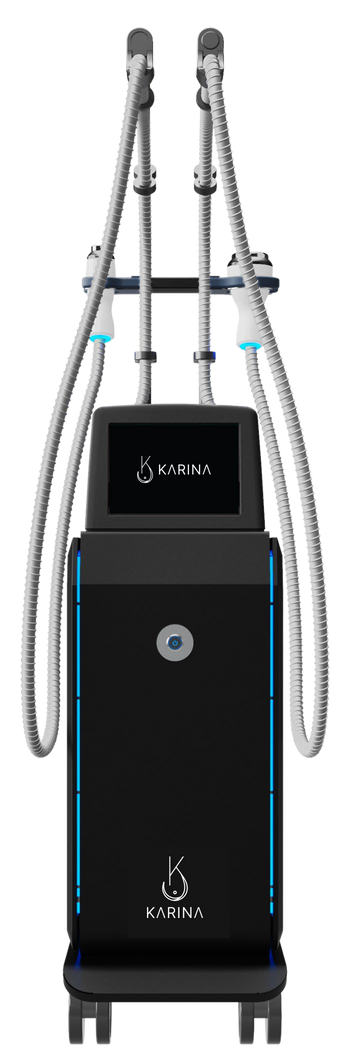

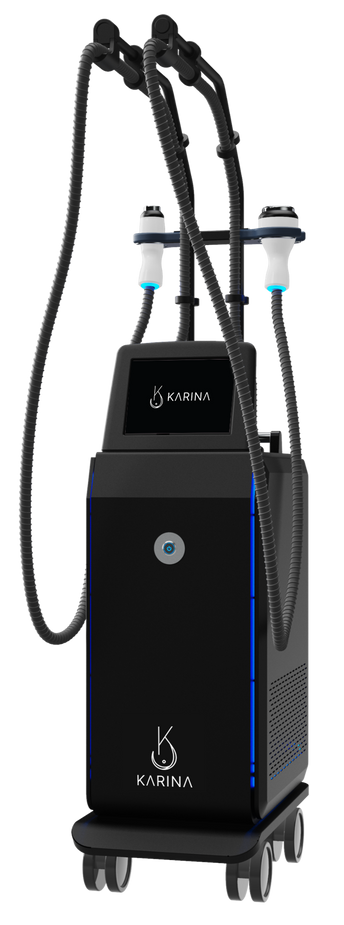

Smart Handpieces

Handpiece Cooling

Emission Control Graphical ​User Interface

Data Base

Dimensions

Weight

Electrical Requirements

KARINA lifting™

2.45 GHz

200 W

Large: Ø 67 mm

Small: Ø 40 mm

Main body LED control system that provides intuitive guidance to the operator

Integrated Skin Cooler

Finger Switch

10,4" Color Display Touch Screen

6 storage memory functions with treatment protocols

360 (L) mm x 680 (W) mm x 1460 (H) mm

<52 Kg

220 Vac; 50-60 Hz; 800 VA
